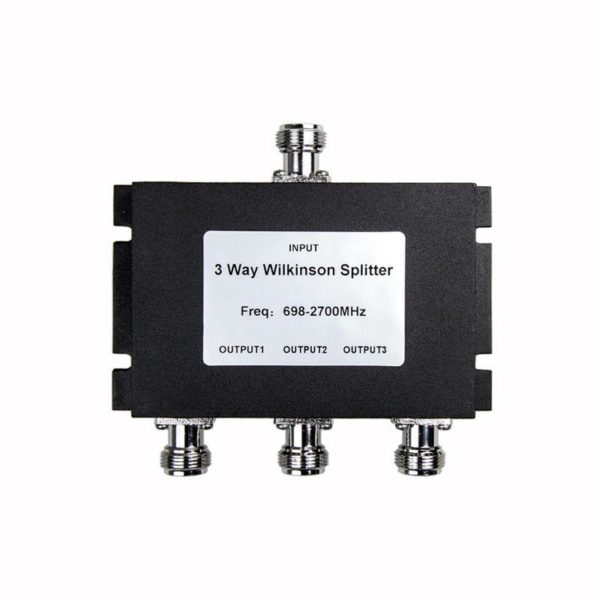

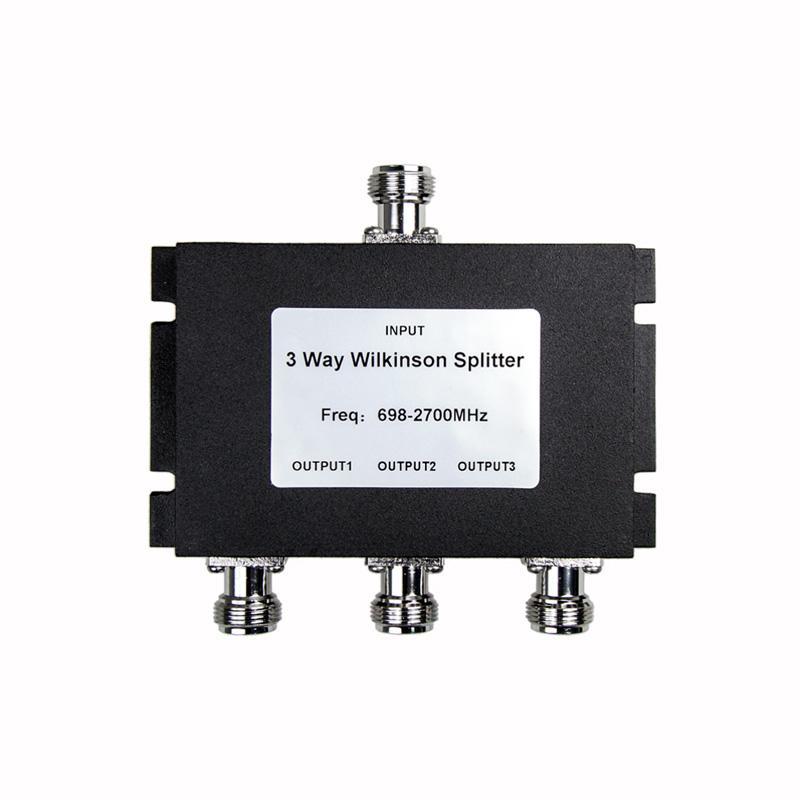

3 Way Splitter
With the WB 3-way splitter, you can deliver enhanced mobile signal to two or multiple rooms. Our three-way splitters enable you to achieve multiple connections of indoor antennas from one mobile booster.
WB 3 Way splitter supports 2G, 3G, and 4G signals for voice and data from 698 to 2700 MHz Frequency.
This 3-way splitter is compatible with all Wave booster repeaters.
It is important to always speak to our Technical Support Team before purchasing any item/items you are not sure.
Frequency Range: 698-960/1710-2700 MHz
Splitter Loss (dB): 2.8
Insertion Loss (dB) ≤ 0,5
Input & Output Impedance: 50 ohm
Isolation (dB) ≥20
VSWR ≤ 1.3
Max. power 50 W
Connector Type: N-Female
Operating Temperature: -35 ℃~+60℃
Splitter Weight: 0,40 kg / 0,88 lbs
