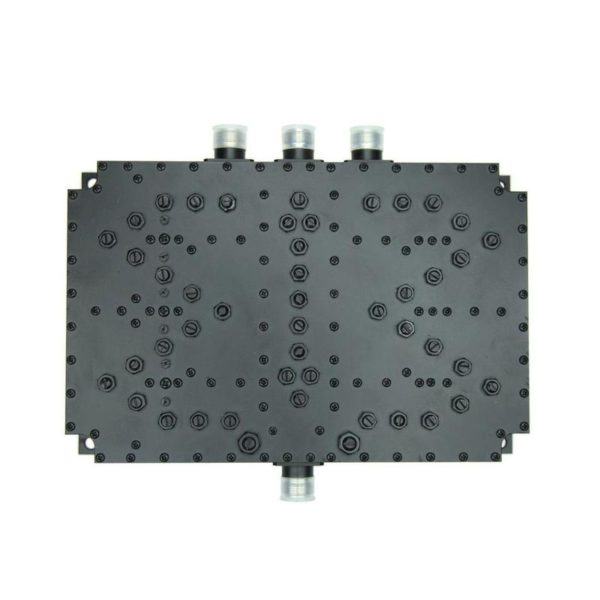

Frequency Combiner – Tri-band

£110 £75


Compatible with all UK Frequencies LITE 800MHZ 900MHz, DCS 1800MHz, 3G UMTS 2100MHz, and /2600MHz, any three of these frequencies can be combined to boost through one indoor antenna instead of each antenna serving each frequency thus reducing the numbers of antenna installed in a building.


Share it:

Frequency Combiner – Tri-band

Our WB Triband Frequency Combiner can be used to combine up to two or three different single band Boosters to either a dual-band or Triband unit. it enables the use of the different outdoor antenna for each frequency band which maximises the signals received from the mobile phone base station.

We recommend you combine separate single bands as this will enable you to attenuate the roof antenna easily for each of the bands.

Our Technical Support Team is always here to help. Give us a call or drop us a mail if you are unsure of how this item or any other products on the website works.

Frequency ( 1 ) 1710 ~ 1850MHz
Frequency ( 2 ) 880 ~ 960MHz
Frequency ( 3 ) 1920 ~ 2170MHz
Band Width ( 1 ) 80MHz
Band Width ( 2 ) 140MHz
Band Width ( 3 ) 250MHz
Insertion Loss ( 1 ) ≤ 0.6dB
Insertion Loss ( 2 ) ≤ 0.8dB
Insertion Loss ( 3 ) ≤ 0.80dB
Passband Fluctuation ( 1 ) ≥80dB @ CH2 & CH3
Passband Fluctuation ( 2 ) ≥80dB @ CH1 & CH3
Passband Fluctuation ( 3 ) ≥80dB @ CH1 & CH2
VSWR ≤1.30 dB
Impedance 50 Ohms
Port Connector N-Female
Max Power. 100 W
Temperature. -25 C ~ 55 C
Size. 206 x 148 x 40 mm
Weight Aprox 3 kilograms
Weight 3 kg
Dimensions 20.6 × 14.8 × 4 cm
