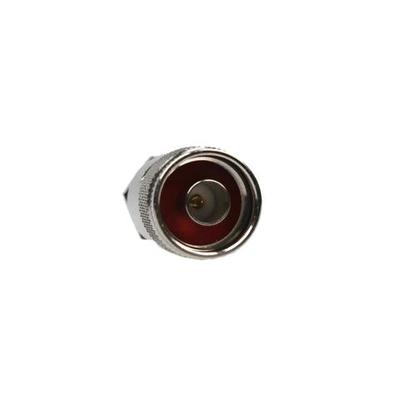

N-Male Compression kit

£5


Contact resistance:
inner conductor  ≤ 3mΩ
outer conductor  ≤ 2.5mΩ
Insulation resistance  ≥5000 MΩ
Medium withstand voltage 1000V


Share it:

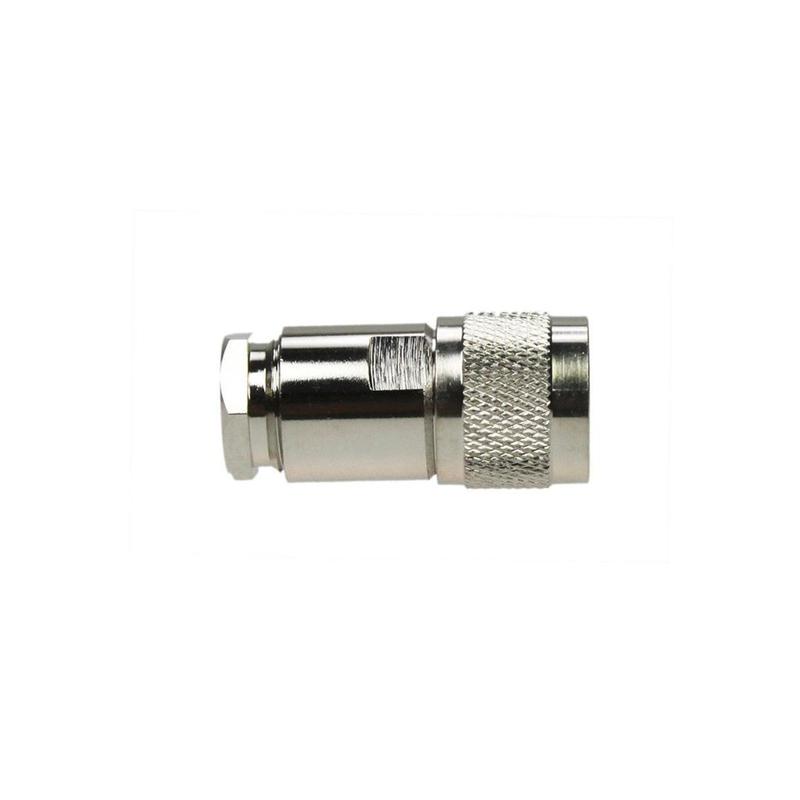

N-Male Compression kit

Our N-type male compression kit can be used when connecting our coax cables to either a splitter, an antenna, or to any of our Mobile boosters.

This connector can be terminated manually by using a safety knife and a plier.

Technical Specifications

 Insert hole Material  Bronze
 Housing Material  Bronze
 Screw sleeve Material  Bronze
 Impedance  50Ω
 Frequency band  DC-3GHz
 Rated operating voltage  335V
 Contact resistance:
 inner conductor ≤ 3mΩ
 outer conductor ≤ 2.5mΩ
Insulation resistance ≥5000 MΩ
Medium withstand voltage 1000V

Mechanical Characteristics

Inner conductor separation force N>0.57N
Mechanical life >500 times (12 times per minute)
Connecting nut torque SMA recommended 0.68~1.13N. m
Material of Coaxial Cable RG187

Working Environment

Ambient temperature -55~155°C
Relative humidity
