SKU: WB018T Categories: , Brand:

Omni Tri Band

£65


This antenna is compatible with all UK Networks operating on the frequency range 824-960 / 1710-2700MHz.


Share it:

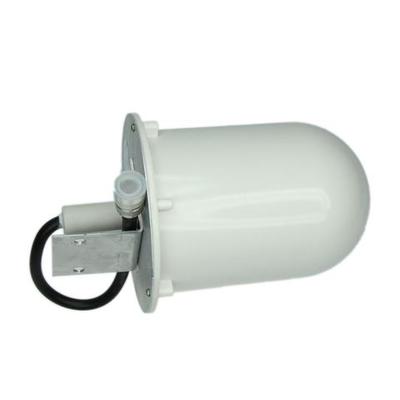

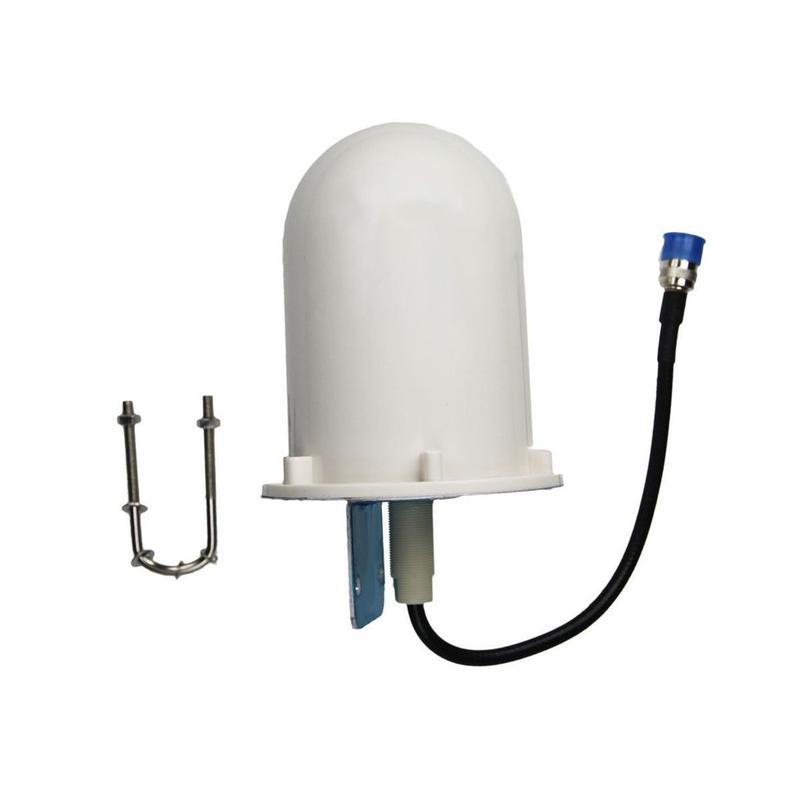

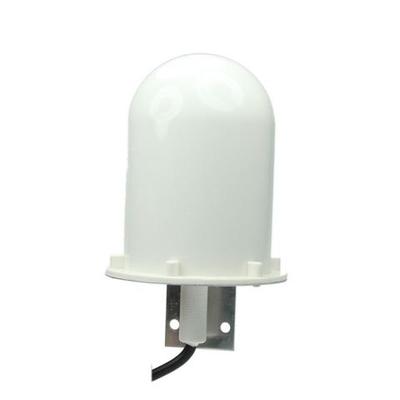

Omni Tri Band

THE WB OMNI Triband Antenna is a non-directional outdoor antenna that can pick signals from 360 degrees of the position it is mounted. Its performance is maximized if it mounted and pointed towards the general direction of the base station. it is basically an outdoor antenna that can be used indoors.

It will have a 360-degree signal effect but because of its low pushing power, we recommend a stronger antenna should be used in areas with very poor outdoor signals.

Frequency Range 824-960 / 1710-2700MHz
Polarization Vertical
Gain 7 dBi
VSWR <= 2.0
Max Power 100 Watts
Impedance 50 Ohms
Lightening Protection Direct Ground
Radome Material PVC
Radome Colour White
Connectors N-Female
Radiating Element Copper
Dimensions 200 x 120 mm

Weight: 250 grams

Weight 0.25 kg
Dimensions 20 × 12.0 cm
