SKU: WB015 Categories: , Brand:

Panel 2G/3G/4G VOICE AND DATA

£45



Share it:

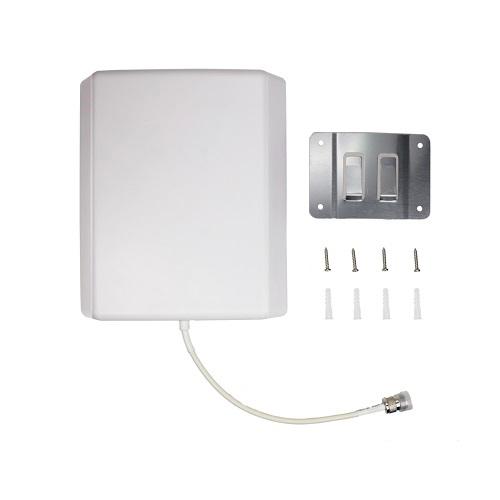

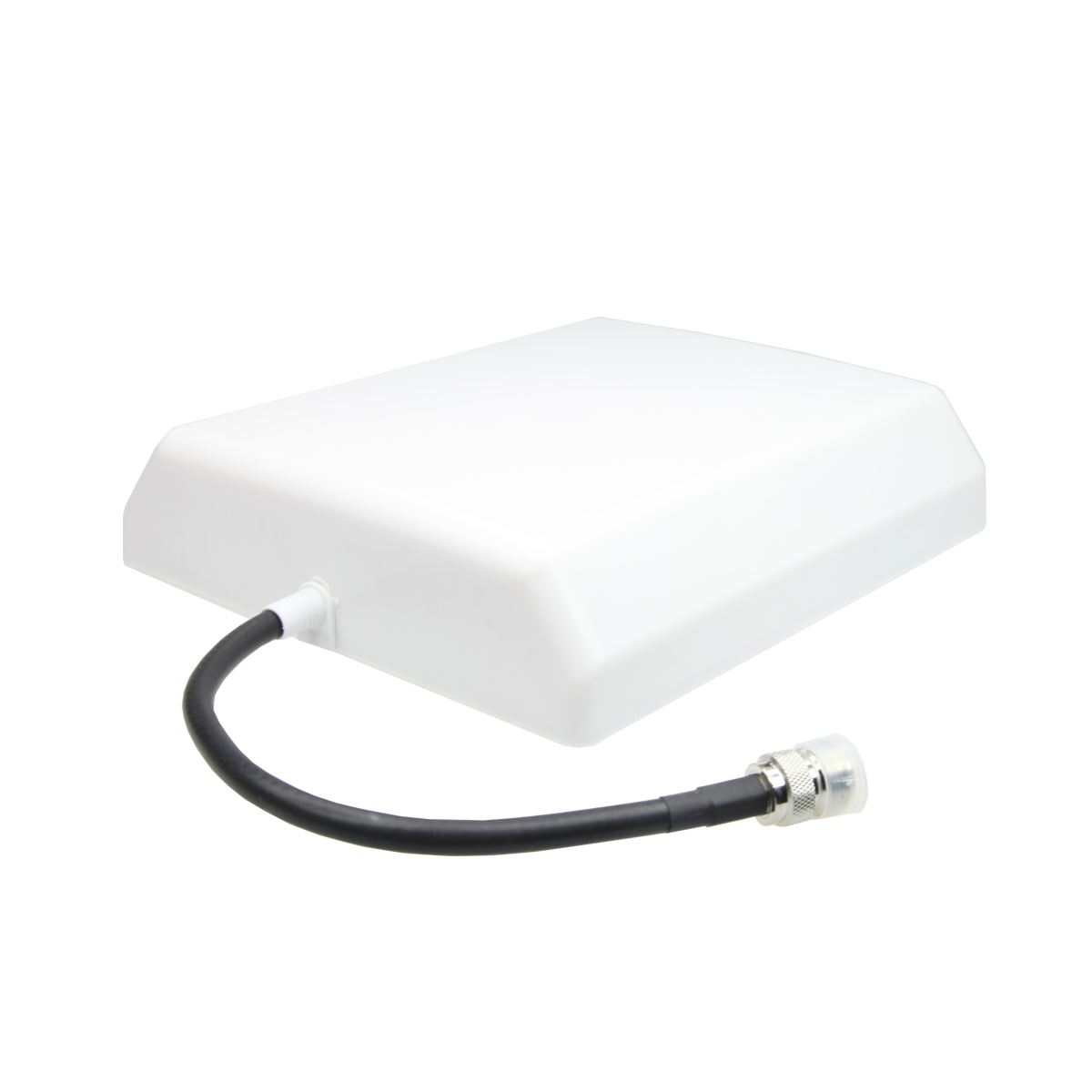

Panel 2G/3G/4G VOICE AND DATA

This is a high gain panel antenna that can be used for both outdoor and indoor purposes. when using as outdoor it helps to receive mobile phone signals from the network base station into the repeater.

As an indoor antenna, it is used to distribute signals from the repeater internally The panel antenna is directional, which means a signal, either way is distributed in one direction. it is compatible with 2G, 3G, and 4G devices and supports all frequencies within 698-2700 MHz spectrum.



Item Information
Frequency GSM 900/1800

Frequency 3G / 4G

800 ~ 960MHz / 1710 ~ 1880MHz

1920 ~ 2180MHz/2700MHz

Gain 7 / 9 dBi
VSWR 1:8:1 / 1.5:1 Max
Impedance 50 Ohms
Termination SMA (F)
Horizontal Beam Width 80°
Vertical Beam Width 70°
Size 255 x 195 x 55 mm
Weight 656 grams



Weight 0.656 kg
Dimensions 25.5 × 19.5 × 5.5 cm
